Uncalibrated Bundle - 6x Sensor & 2x I²C Board

£205.00

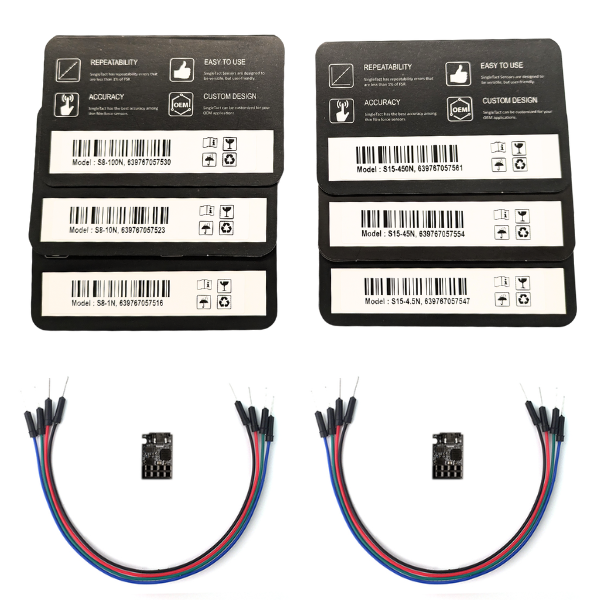

This bundle contains 6 SingleTact force sensors and two sets Electronics Boards I²C. The sensors included are: 1x S8-1N, 1x S8-10N, 1x S8-100N, 1x S15-4.5N, 1x S15-45N & 1x S15-450N

This bundle gives you 10% DISCOUNT in comparison to buying these individually!

Quantity:
Add To Cart

This bundle contains 6 SingleTact force sensors and two sets Electronics Boards I²C. The sensors included are: 1x S8-1N, 1x S8-10N, 1x S8-100N, 1x S15-4.5N, 1x S15-45N & 1x S15-450N

This bundle gives you 10% DISCOUNT in comparison to buying these individually!

This bundle contains 6 SingleTact force sensors and two sets Electronics Boards I²C. The sensors included are: 1x S8-1N, 1x S8-10N, 1x S8-100N, 1x S15-4.5N, 1x S15-45N & 1x S15-450N

This bundle gives you 10% DISCOUNT in comparison to buying these individually!

DOWNLOADS

DOWNLOADS


SENSOR PERFORMANCE

Force Resolution

Maximum Force

Typical Repeatability Error

Operating Temperature

Temperature Sensitivity

Linear Error

Drift

Hysteresis

Response Time

Contract Surface Material

Sensor Thickness

Typical Baseline Capacitance

ESD Sensitivity

Material Grade



< 0.2% of Full Scale (FSR)

300% of FSR

< 1.0% (1 sigma of FS)

-40°C < T < 85°C

< 0.2%/° C

< 2.0%

2% in 1 min, 4% in 10 min, at 50% FSR load

< 4.0%

< 1ms(Measured using Oscilloscope)

Polyimide

0.30mm

8mm 75 pF; 15mm: 230 pF @ 100 kHz

Not sensitive to ESD

UL grade 94 V-1 or better


ELECTRONICS SPECIFICATIONS

Update Rate

Analog Out

Digital Interface

IO Voltage

Supply Voltage

Input Current

Weight

RoHS

Operating Temperature



>120 Hz

0.5-1.5V

I²C (100kHz), 10-bit resolution

3.3V

3.7-5V

2.7 mA

Sensor 0.23g/ Electronics 1.6g

Compliant

-40°C < T < 85°C


SOFTWARE


SENSOR MECHANICAL
